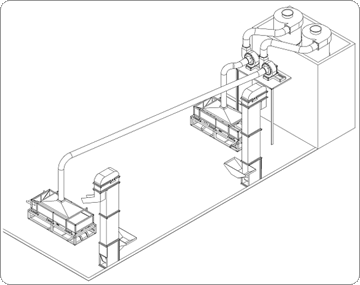

Pneumatic Cleaner

Pneumatic Cleaner

Pneumatic Cleaner

Mitsun’s pneumatic cleaners are one of the most sought exporters of pneumatic tools and industrial cleaning equipments. These pneumatic cleaners highly effective in seed cleaning and are used in many industries like construction, engineering, automobiles etc. The best part of Mitsun’s Pneumatic cleaner is that during the cleaning operation of seeds it also improves the results.

Most effective in seed Cleaning Operation Improves the Quality of Seeds.

Regulation of volume through the machine is done by a vane type feeder and may be varied by setting of hinged fed gate in multiple installations the feeders may be uniformily controlled by a group drive from a variable space transmission.
On the upper shaker cotton balls /SunFlower Seed dust material / Ground nut / Soyabean Seed are seperated . The cleaned seed is discharged from the lower shaker directly into strong uniform air currents which rise vertically in the aspiration chamber.

As the seed travels horizontally and loosely toward the srceen panel , light trash, loose lint and shell are carried off by the low velocity air currents in the expansion chamber section. When the seeds impinge on the screen panel , the imbedeed sand and dirt along with additional shell and hull matter, is permitted to pass through the screen and is collected and discharge by the screw conveyor at the rear on the panel . The incoming air to the aspiration chamber is used to again deflect the mass of the grey seed that is discharged from the rotary valve below the screen panel and here additional celaning is accomplished . Twings and stems and other debris are blown free of the seed and join the black seed , stones etc.. that are being conveyed to the stoner and remove


Operation of Mitsun’s Pneumatic Cleaners

Mitsun’s Pneumatic Cleaners are very easy to operate. The volumes of seeds to be cleaned are set through a vane type feeder by setting it through a hinged gate in multiple installations. This feeder uniformly controls the group drive from a variable space transmission.

Through the upper shaker cotton balls / Sunflower Seed / dust material / Ground nut / Soybean Seed are separated. The cleaned seed is discharged from the lower shaker directly into strong uniform air currents which rise vertically in the aspiration chamber.

As the seed travels horizontally and loosely toward the screen panel, light trash, loose lint and shell are carried off by the low velocity air currents in the expansion chamber section. When the seeds impinge on the screen panel, the imbedded sand and dirt along with additional shell matter, is permitted to pass through the screen and is collected and discharge by the screw conveyor at the rear on the panel. These are being conveyed to the stoner to remove twigs, black seed, stones, stems and other debris is sorted free of the seed The incoming air to the aspiration chamber is used to again deflect the mass of the grey seed that is discharged from the rotary valve below the screen panel and here additional cleaning is done.
