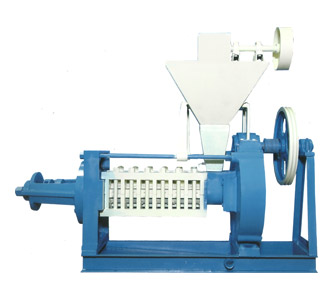

Mini Oil Expeller

Mini Expeller Chamber Size 24" X 4" Single Chamber type 3-Phase 7.5/10hp Motor.80 kgs to 100 kgs per hour (2 to 2.5 tons in 24 hours) Capacity diffrers with material density and quality of oil in the seed.
STANDARD SPECIFICATION MITSUN ENGINEERING
SINGLE CHAMBER EXPELLER

Model

Chamber Size

H.P Req.

Crushing Capacity / 24 hours







Cotton Seed in Tons

Groundnut in Tons

Sunflower in Tons
MIT-S10 24” X 4” 10 HP 2.0 2.0 To 2.5 2.0 To 2.5
MIT-S20 27” X 5” 20 HP 3 To 3.5 3.5 To 4 3.5 To 4
MIT-S25 30” X 5 1/2” 25 HP 4 To 5 4.5 To 5 4.5 To 5
We are prominent names in the industry for offering a wide range of Oil Milling Plant . Owing to their sturdiness, high working capacity, excellent damage resistance, and dimensional accuracy, these plants are highly demanded. Apart from this, these have two chamber design, pre-pressing and full pressing in single stage crushing for better profitable and oil recovery operation.

Features:

Mitsun Easy to use
Mitsun Sturdy construction
Mitsun Low maintenance

Cooker:

Steam Jacketed horizontal cooker mounted on the Main Expeller Body.

Gear Box:

Heavy duty Double Reduction Gear Box assembly precision work-manship and fitted with heavy duty taper roller bearing to with stand radial axial loads for crushing.

Main Shaft:

A unique hollow drive sleeve arrangement to allow the main worm shaft to remove at ease without affecting the gear box assembly. Also provision for water cooling arrangement for better quality oil and cake. Alloy steel main shaft, worms and cage bars are made from special steel material with proper hardening to withstand operating pressure and long life.

Electric Motor:

Expeller drive with Slip Ring Electric Motor with special starter - slow start up with reversible switch panel board, low wear and tear, restart easy due to power failure.

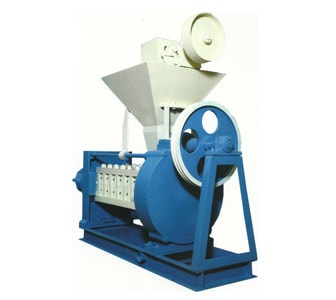

STANDARD SPECIFICATION MITSUN ENGINEERING
SINGLE CHAMBER EXPELLER WITH ROUND KETTLE

Model

Chamber Size

H.P Req.

Crushing Capacity / 24 hours







Cotton Seed in Tons

Groundnut in Tons

Sunflower in Tons
MIT-S30 33” X 6” 30 HP 6.0 TO 7.0 7.0 TO 8.0 7.0 TO 8.0
MIT-S40 36” X 6 1/2” 40 HP 8.0 To 10.0 10 To 11 10 To 11
MIT-S50 44” X 7” 50 HP 13 To 15 15 To 17 15 To 17
