Ginning Of Cotton


Actually “Ginning” means “machining”. "Cotton Ginning" is one of the oldest processes done by hand which actually separates cotton fiber from cotton seeds. This ginning when done by hand it takes a lot of pain and it is a time consuming process. The separated undamaged seeds are used to again grow cotton and the damaged seeds can be used to extract oil.


Cotton Ginning Process


Ginning is the first mechanical process involved in processing cotton. Ginning mill separates cotton fibre from the seed bolls and dust particles. The main application of ginned cotton referred to as lint is for spinning operations, where lint is converted to yarn.

Directly from the field, the cottonseed comes to nearby gins for separation of cotton (lint) and seeds. The cotton first goes through air dryers to reduce moisture content and then through cleaning equipment to remove foreign particles. This operation actually facilitates the processing of cotton and improves the fibre quality of cotton. The cotton is then air conveyed to gin stands where revolving circular saws separate the cotton (lint) through closely spaced ribs that prevents the “cotton-seeds” from passing through. The cotton (lint) is removed from the saw teeth by air blasts or by rotating brushes, and then the cotton is compressed into bales in to the weight you choose. Pure cotton is then moved to a warehouse for storage until it is shipped to a textile mill for manufacturing of spun into threads, made into textiles and then used to produce final cotton products such as clothing, sheets, and other items.

Depending on the capacity the Cotton Ginning Machine – it can process from about 12 bales per hour to 60 bales an hour.


Mitsun’s Cotton Ginning Machine


Mitsun’s Cotton ginning machines are one of the well accepted cotton ginning machines globally. Mitsun is one of the highest overruling Double Roller Ginning Machine Exporters based from India. Our Cotton Ginning Machine, and Double Roller Cotton Ginning Machines are  widely used to gin the lint in small as well as bulk quantity.

Mitsun’s Cotton Ginning machines are technically advanced machines. The latest technology to manufacture cotton ginning machines assures the rotating parts the highest tolerance and best finish ensuring high durability. Mitsun’s cotton ginning machines are available with various user-friendly features which ensure ease of operation and lowest maintenance cost of Cotton Ginning Machine.

Double Roller Gin Stand
Double Roller Gin Stand
Mitsun Compact and rigid construction.
Mitsun Low consumption of Electric power.
Mitsun Steel Helical Gears for high contact ratio and noiseless working.
Mitsun Less wear and tear.

Double Roller Gin Stand
Double Roller Gin Stand
Mitsun Processing capacity: 3500-4500 kg per hour
Mitsun Operating speed: 180 RPM
Mitsun Drive: gearbox drive
Mitsun Ele motor: 5 hp.

Pre-Cleaning Machine
Pre-Cleaning Machine
Mitsun Protects fiber quality.
Mitsun Cleans gently and efficiently.
Mitsun Optimizes ginning performance.
Mitsun Robust construction longer life.

Suction fan for cotton and lint
Suction fan for cotton and lint
Mitsun The Supreme fan is the result of experience that has resulted in an ideal for ginning applications. The fan is fabricated with abrasion resistant M.S. Sheet scrolls.

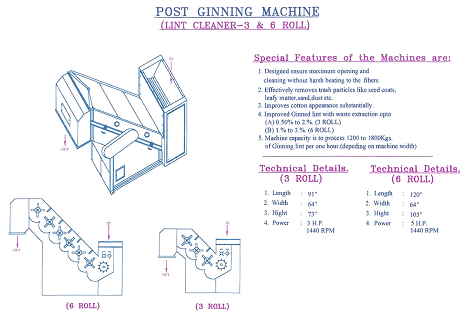

Lint-Cleaner(Super Cleaner)
Lint-Cleaner(Super Cleaner)
Mitsun Protects fiber quality.
Mitsun Cleans gently and efficiently.
Mitsun Reduces trash content

Offloading Machine
Offloading Machine
Mitsun Offloading machine is a new invention in ginning technology. This machine off load machine without more labor and raw cotton goes into raw cotton store automatically from truck.
